SUMMARY: The chapter on Conic Sections in Class 11 Mathematics explores the definitions, properties, and equations of various conic sections such as circles, ellipses, parabolas, and hyperbolas. KEY TOPICS: conic sections, circle, ellipse, parabola, hyperbola, standard equations, eccentricity, directrix, focus, latus rectum
Find the equation of the circle passing through (0, 0), (4, 0) and (0, 4).
View sample solutionHide solution
General circle: x² + y² + Dx + Ey + F = 0. Through (0, 0): F = 0. Through (4, 0): 16 + 4D = 0 ⇒ D = −4. Through (0, 4): 16 + 4E = 0 ⇒ E = −4. Equation: x² + y² − 4x − 4y = 0, i.e. (x − 2)² + (y − 2)² = 8 with centre (2, 2) and radius 2√2.
Q126 Marks
Find the equation of the parabola with vertex at origin, axis along x-axis and passing through the point (3, 6).
View sample solutionHide solution
Parabola y² = 4ax. Through (3, 6): 36 = 4a · 3 ⇒ a = 3. Equation y² = 12x.
Q136 Marks
For the ellipse x²/25 + y²/16 = 1 find the lengths of major and minor axes the foci and the eccentricity.
View sample solutionHide solution
a² = 25 ⇒ a = 5; b² = 16 ⇒ b = 4. Major axis = 2a = 10; minor axis = 2b = 8. c² = a² − b² = 9 ⇒ c = 3. Foci: (±3, 0). Eccentricity e = c/a = 3/5.
Q146 Marks
Find the equation of the hyperbola with foci (±5, 0) and length of conjugate axis 8.
View sample solutionHide solution
Foci (±c, 0) so c = 5. Conjugate axis 2b = 8 so b = 4. Then a² = c² − b² = 25 − 16 = 9 ⇒ a = 3. Equation: x²/9 − y²/16 = 1.
Q156 Marks
For the parabola y² = 8x, find the length of latus rectum and the focal distance from the point (2, 4) to the focus.
View sample solutionHide solution
y² = 4ax with 4a = 8 so a = 2. Latus rectum = 4a = 8. Focus is (2, 0). Distance from (2, 4) to focus (2, 0) = √(0² + 4²) = 4 units.
Q166 Marks
Compare ellipse hyperbola and parabola with the help of a table.
Assertion–Reason Questions5 questions
Q171 Mark
Assertion (A): A circle is a special case of an ellipse.
Reason (R): A circle is an ellipse with equal semi-axes (eccentricity 0).
Show explanationHide explanation
Correct answer: Option 1 —
Both A and R are true, and R is the correct explanation of A.
Q181 Mark
Assertion (A): The axis of the parabola y² = 4ax is the x-axis.
Reason (R): The parabola is symmetric about the x-axis.
Show explanationHide explanation
Correct answer: Option 1 —
Both A and R are true, and R is the correct explanation of A.
Q191 Mark
Assertion (A): For an ellipse a² > b² and e < 1.
Reason (R): The ellipse equation is x²/a² + y²/b² = 1 with semi-major axis a and semi-minor axis b.
Show explanationHide explanation
Correct answer: Option 1 —
Both A and R are true, and R is the correct explanation of A.
Q201 Mark
Assertion (A): The eccentricity of a hyperbola is greater than 1.
Reason (R): For a hyperbola c > a so e = c/a > 1.
Show explanationHide explanation
Correct answer: Option 1 —
Both A and R are true, and R is the correct explanation of A.
Q211 Mark
Assertion (A): The equation x² + y² = 4 represents a circle of radius 2.
Reason (R): Comparing with x² + y² = r² gives r² = 4 ⇒ r = 2.
Show explanationHide explanation
Correct answer: Option 1 —
Both A and R are true, and R is the correct explanation of A.
Statement-Based Questions5 questions
Q221 Mark
Statement 1: A circle is a conic section with eccentricity 0.
Statement 2: A parabola has eccentricity 1.
Show answerHide answer
Correct answer: Option 1 —
Both statements are true.
Q231 Mark
Statement 1: An ellipse has two foci.
Statement 2: The sum of distances from any point on the ellipse to the foci is constant.
Show answerHide answer
Correct answer: Option 1 —
Both statements are true.
Q241 Mark
Statement 1: A hyperbola has two branches.
Statement 2: The difference of distances from any point on the hyperbola to the two foci is constant.
Show answerHide answer
Correct answer: Option 1 —
Both statements are true.
Q251 Mark
Statement 1: The parabola y² = 4ax opens to the right when a > 0.
Statement 2: The parabola y² = 4ax opens to the left when a < 0.
Show answerHide answer
Correct answer: Option 1 —
Both statements are true.
Q261 Mark
Statement 1: A parabola is the locus of points equidistant from a focus and a directrix.
Statement 2: The eccentricity of a parabola is 1.
Show answerHide answer
Correct answer: Option 1 —
Both statements are true.
Case Study / Passage Questions3 questions
Q273 Marks
A satellite dish has a parabolic cross-section with the vertex at the origin opening to the right described by y² = 4ax where a is the focal distance. The receiver is placed at the focus 30 cm from the vertex.
If a = 30 cm the equation of the parabola is:
Ay² = 30x
By² = 60x
Cy² = 90x
Dy² = 120x
The length of the latus rectum equals:
A30 cm
B60 cm
C120 cm
D150 cm
Find a point on the parabola at horizontal distance 50 cm from the vertex.
Show answersHide answers
1. Option 4 — y² = 120x
2. Option 3 — 120 cm
3. With a = 30: equation y² = 4ax = 120x. Latus rectum = 4a = 120 cm. Focus is at (30, 0) and the directrix is x = −30. The vertex (0, 0) is on the parabola.
Q283 Marks
An elliptical garden has the equation x²/100 + y²/64 = 1 (in metres). The gardener wants to know the major axis minor axis foci and eccentricity.
The semi-major axis equals:
A8 m
B10 m
C16 m
D20 m
The eccentricity equals:
A3/5
B4/5
C5/3
D5/4
Find the foci of the ellipse.
Show answersHide answers
1. Option 2 — 10 m
2. Option 1 — 3/5
3. a² = 100 ⇒ a = 10 (semi-major). b² = 64 ⇒ b = 8 (semi-minor). c = √(a² − b²) = √36 = 6. Eccentricity = c/a = 6/10 = 3/5. Foci at (±6, 0). Major axis = 2a = 20 m; minor axis = 2b = 16 m.
Q293 Marks
A hyperbolic mirror has the equation x²/9 − y²/16 = 1. The optician needs the foci eccentricity asymptotes and the directrix lines.
The semi-transverse axis 'a' equals:
A3
B4
C5
D7
The eccentricity equals:
A3/5
B4/3
C5/3
D5/4
Write the equations of the asymptotes.
Show answersHide answers
1. Option 1 — 3
2. Option 3 — 5/3
3. a² = 9 ⇒ a = 3; b² = 16 ⇒ b = 4. c² = a² + b² = 25 ⇒ c = 5. e = c/a = 5/3 > 1 ✓ (hyperbola). Foci at (±5, 0). Asymptotes y = ±(b/a) x = ±(4/3) x.
Table-Based Questions3 questions
Q303 Marks
Study the standard equations of conics:
Conic
Standard equation
Eccentricity
Circle
x² + y² = r²
0
Parabola
y² = 4ax
1
Ellipse
x²/a² + y²/b² = 1
< 1
Hyperbola
x²/a² − y²/b² = 1
> 1
The eccentricity of a circle is:
A0
B1
C>1
D<1
The conic with eccentricity equal to 1 is the:
ACircle
BParabola
CEllipse
DHyperbola
Write the standard equation and eccentricity range for each conic.
Show answersHide answers
1. Option 1 — 0
2. Option 2 — Parabola
3. Eccentricity classifies conics: e = 0 → circle; e = 1 → parabola; 0 < e < 1 → ellipse; e > 1 → hyperbola. As e increases the conic 'opens up' more.
Q313 Marks
Study the parabola y² = 12x and its parameters:
Parameter
Value
4a
12
a
3
Vertex
(0, 0)
Focus
(3, 0)
Directrix
x = −3
Latus rectum
12
The value of a (focal distance) is:
A1
B3
C6
D12
The length of the latus rectum equals:
A3
B6
C12
D24
Find the equation of a chord of length 8 perpendicular to the axis at x = 3.
Show answersHide answers
1. Option 2 — 3
2. Option 3 — 12
3. For y² = 4ax: 4a = 12 ⇒ a = 3. Vertex (0, 0). Focus (a, 0) = (3, 0). Directrix x = −a = −3. Latus rectum = 4a = 12. The parabola opens to the right since a > 0.
Q326 Marks
For the ellipse x²/25 + y²/9 = 1, find the lengths of major and minor axes, the foci, and the eccentricity.
Parameter
Computation
a²
25
b²
9
c² = a² − b²
?
Eccentricity e = c/a
?
Picture-Based Questions1 question
Q333 Marks

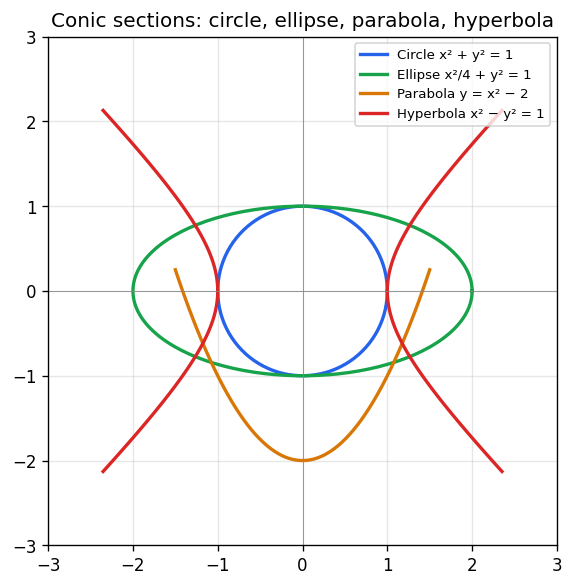

Study the four conic sections plotted together and answer:
The conic with eccentricity e = 0 is the:
ACircle
BParabola
CEllipse
DHyperbola
The eccentricity of a hyperbola is:
A0
B< 1
C1
D> 1
Classify the four conics by their eccentricity.
Show answersHide answers
1. Option 1 — Circle
2. Option 4 — > 1
3. Eccentricity e classifies conic sections: e = 0 → circle (special ellipse); 0 < e < 1 → ellipse; e = 1 → parabola; e > 1 → hyperbola. As e increases, the curve becomes more 'open'. All four conics arise from cutting a double cone with a plane at different angles.
